| SPECIFICATIONS | |||
| Place of Origin: | Guangdong, China | Type: | 1.5V Rechargeable D Battery |
| Model: | EC1600 | Nominal Voltage: | 1.5V |
| Nominal Capacity: | 4000mAh | Nominal Energy: | 6000mWh |
| Discharge Current: | 3A@1.5V | Max. Discharge Current: | 4A |
| Rated Charging Voltage: | 5V | Rated Charging Current: | 450mAh |
| Device Compatibility: | Toys, Tools, Camera, Flashlights, Boombox ,Measuring Instrument, etc | ||

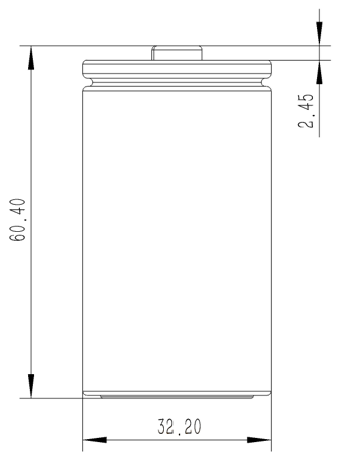

Description | Dimension | |||
EC1600, D, Constant Voltage Regular Rechargeable Lithium ion Battery(CVR Battery) with a built-in battery controller. ※1.5V Constant voltage output ※Low self-discharge ※Fast charging ※Device Compatibility ※Capacitive lithium ion cell |
| |||
Electrical Characteristics | ||||
Characteristic | Symbol | Parameter | Unit | |
Nominal Voltage | VO | 1.5±2% | V | |
Nominal Capacity | - | 4000 | mAh | |
Nominal Energy | - | 6000 | mWh | |
Constant Voltage Maximum Discharging Current | ID-MAX | 3.0 | A | |
Discharge Shutoff Voltage | VDO | 0 | V | |
Rated Charging Voltage | VRC | 5.0±0.25 | V | |
Rated Charging Current | IRC | 450 | mA | |
Full Charging Time | - | <5.5 | H | |
Self Discharge | ISD | <20.0 | µA | |
Discharging Over-Temperature Threshold | TDH | 60.0±2 | ℃ | |
Charging Over-Temperature Threshold | TCH | 45.0±2 | ℃ | |
Full Charge Storage Time | - | >24 | Months | |

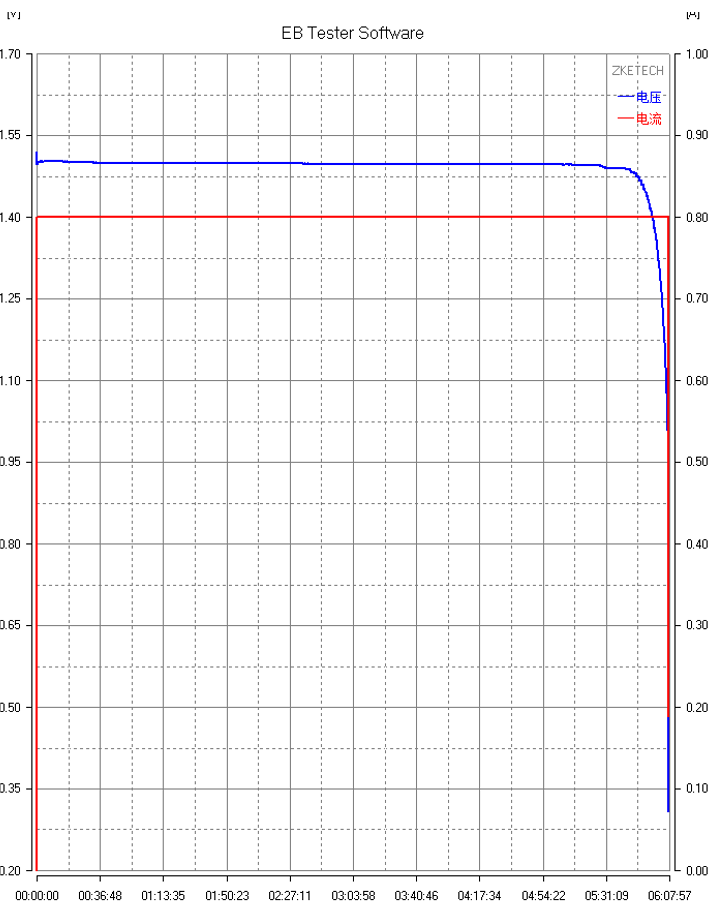

0.2C（267mA）Discharge | ||||
| ||||
